Our Heat Exchanger systems are the simplest, easy-to-install alternative to polyethylene pipe pond loop or cooling tower systems!

We take pride in offering two primary heat exchanger designs - the Slim Jim® and Geo Lake Plate®. Both of these options are not only cost-efficient but also environmentally friendly, serving as a convenient:

"POND LOOP IN A PACKAGE"

It's worth noting that even though the plates for each system share the same dimensions, we customize designs and quotes for every job. This customization is based on the unique environmental conditions, usage requirements, and water composition, ensuring that we always recommend the best fit for your specific needs.

Diagram of a Geo Lake Plate aquaponics system with multiple interconnected fish tanks, grow beds, and a filtration system.

The Slim Jim® is available in 304 Stainless Steel

  • Primarily for fresh water applications, including lakes, ponds, reservoirs, and even moving rivers

  • Unlimited configurations: from single plates for small systems, to multiple arrays of exchangers each comprised of multiple stainless steel plates

  • Custom low-profile units available for shallow waters

  • Configurations are designed based on the application, and the exchangers can be custom design when necessary

  • Easy to install and contractor / labor friendly

  • Easy to flush and maintain

The Geo Lake Plate® option is a Titanium set of plates used primarily for salt water or brackish water applications. This includes aquariums, brackish lakes, bays, and even coastal rivers.

  • Titanium option is also necessary when installed at sites that are in close proximity to salt and/or brackish water**

  • Also available in 316 stainless steel* for versatile applications

  • Unlimited configurations: from single plates for small systems, to multiple arrays of exchangers each comprised of multiple plates

  • Configurations are designed based on the application, and the exchangers can be custom designed when necessary

  • Easy to maintain and simple to flush

  • Straightforward installation processes which are contractor / labor friendly

Titanium plates are necessary to avoid corrosion if salt/brackish bodies of water flood over and spill into the water where the lake plates are located.

Key Features & Benefits of Slim Jim® and Geo Lake Plate® Exchangers

Blueprint drawing of a large, rectangular, metal-framed structure, showing plan view, elevation, isometric, and end view connection details with measurements.
Construction worker in a white helmet inspecting a large metallic industrial tank or structure outside, with a modern blue building and a white truck nearby against a clear blue sky.

Custom Design

Contractor-Friendly Design

An aircraft fuselage or spacecraft structure in a workshop, supported on blue and yellow stands. The interior is visible with metal framing and some equipment in the background.
A laptop displaying a conductivity test graph with various numerical data, surrounded by wires and cables, and a person's hand visible at the bottom of the image.

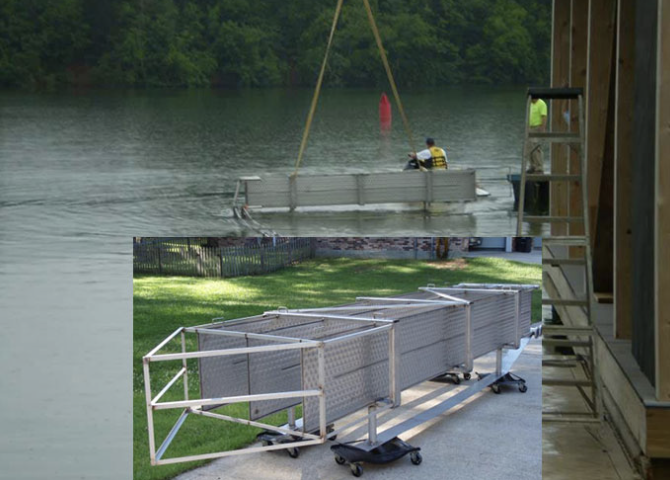

A flat floating platform on a river with a crane lifting it, a person in a boat nearby, and a person standing on a ladder on the dock; a large wheeled gantry with multiple metal containers is on the dock.

Custom Fabrication

Third Party Testing

A floating solar-powered water purifier with blue filters on a body of water, connected to pipes or hoses.
A calm lake surrounded by green trees and rocky slopes under a blue sky.
Aerial view of a marina with numerous boats docked, adjacent to a park with walking paths, green lawns, and landscaped areas, near a body of water.

Safe, Environmentally-Friendly

Large Industrial Applications

Specifications for Slim Jim® & Geo Lake Plate

The image to the right has the individual specifications for each model of the Slim Jim® (304 Stainless Steel) and Geo Lake Plate® (316L Stainless Steel & Titanium) Heat Exchangers. Both products are a significant innovation in GeoExchange Pond Loop / Lake Loop technology, designed and developed by AWEB Supply.

Virtually Unlimited Applications in Locations Near Any Body of Water

Small Residential Installs

Commercial Applications

Two men working on a large, metallic fish ladder or water intake structure near a creek or river, with a small covered wooden platform in the background.
Sunset view of Sydney Harbour with boats, the Harbour Bridge, and the city skyline in the background.

Large Residential Installs

Saltwater Applications

Graph showing pressure drop versus flow rate for different models of Slim Jim pressure drop/flow data, with color-coded lines indicating different models, all based on water media at around 84°F.
Table chart illustrating specifications of different models, including their dimensions, pressure drop, volume, and weight.

Easy To Install

Large and Small Rivers

Construction site near a pond with workers swimming, a floating platform, and buildings under construction in the background.
Flooded solar panel next to a body of water, with a pipe and water plants nearby.

Slim Jim® - Geo Lake Plate® Installation Requirements / Criteria

Logo for Slim Jim Geo Lake Plate, featuring a textured silver diamond shape with bold white text, and a black, purple, blue, and red banner.

Single plate or assembly(s) must be installed to stand or suspend/hang1 vertical completely submerged in a body of water.

  • The fluid flow from the Heat Pump(s) or Chiller(s) equipment must enter the lowest connection on the Slim Jim® / Geo Lake Plate® plate or assembly(s). The fluid flow returning to the Heat Pump(s) or Chiller(s) equipment must exit the highest connection on the Slim Jim® / Geo Lake Plate® assembly. This will ensure any air remaining air the system will not be trapped in the Slim Jim® / Geo Lake Plate® assembly.

  • The body of water must be adequate to accommodate the load requirements.

  • The single plate or assembly(s) must be supported off the bottom above silt or mud. This can

    be accomplished with legs or other means (see examples).

  • The single plate or assembly(s) can be suspended1 from piers or docks, but must be secured

    and protected for the conditions in which they are installed.

  • The recommended minimum installation depth should be 3' to 4’ of water from the top of plates. In northern climates we recommend a minimum of two (2) foot clearance beneath freeze line and top of plates.

  • Slim Jim® 304 Stainless Steel is recommended for “Fresh Water Applications Only”

  • Geo Lake Plate® 316L Stainless Steel is recommended for “Fresh Water Applications Only”

  • Geo Lake Plate® Titanium is recommended for “Brackish and Seawater Applications”

Diagram of a pond/lagoon installation showing assembly of a Slim Jim or Geo Lake Plate system with pipes, connections, and flow directions for cooling applications.
